boat
  • boat

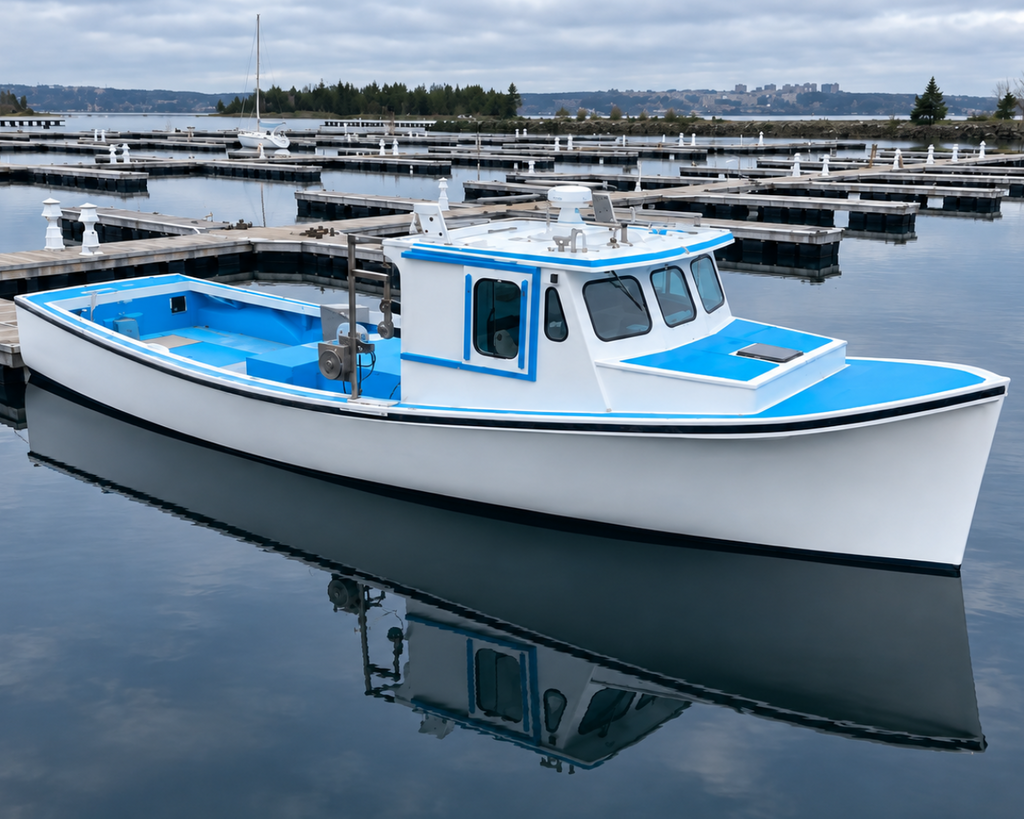

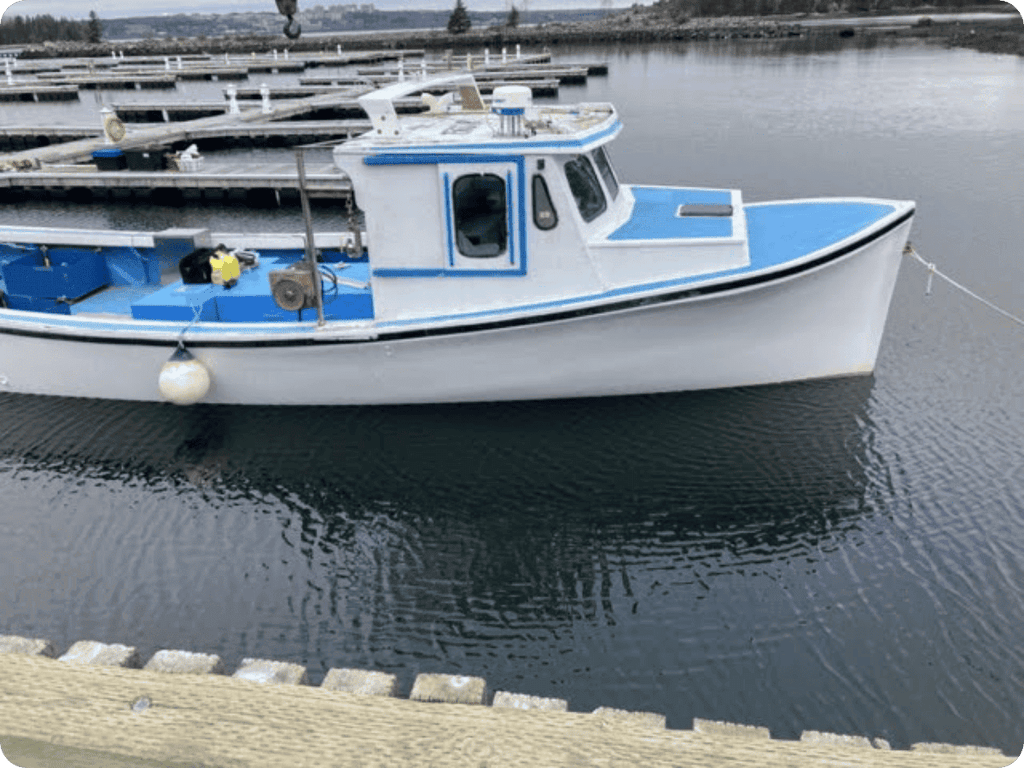

  • A small white and blue fishing boat moored at a dock in calm water, with wooden piers and shoreline visible in the background.

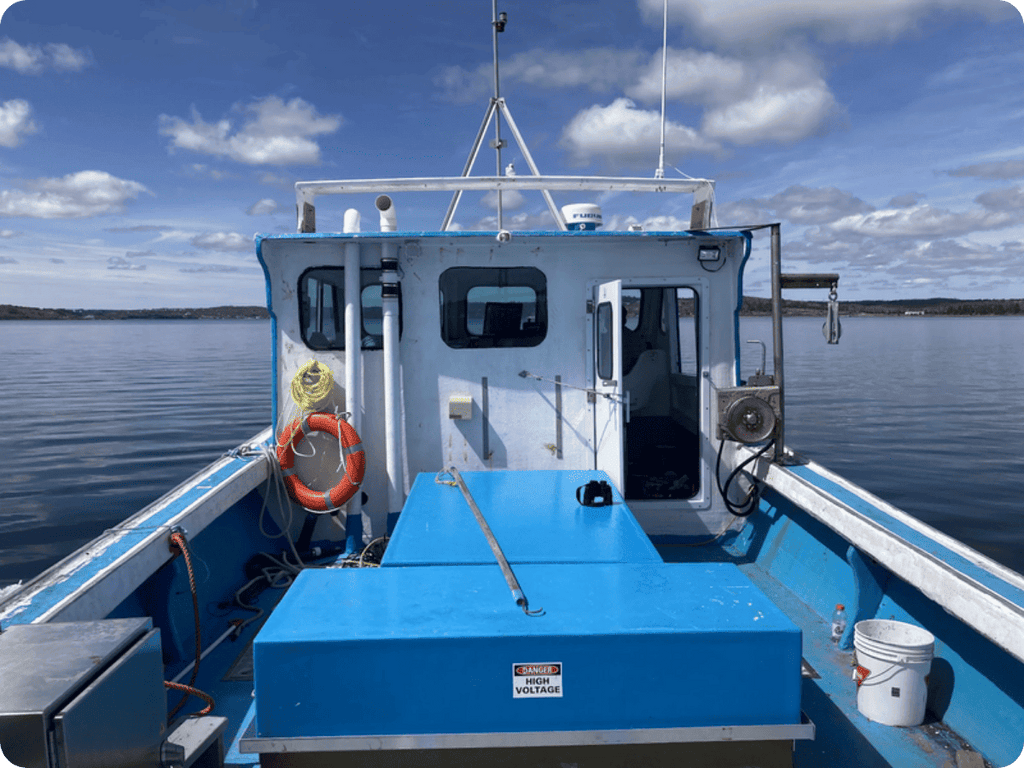

  • A blue and white boat cabin viewed from the deck, with an orange life preserver, blue water, and a cloudy sky in the background.

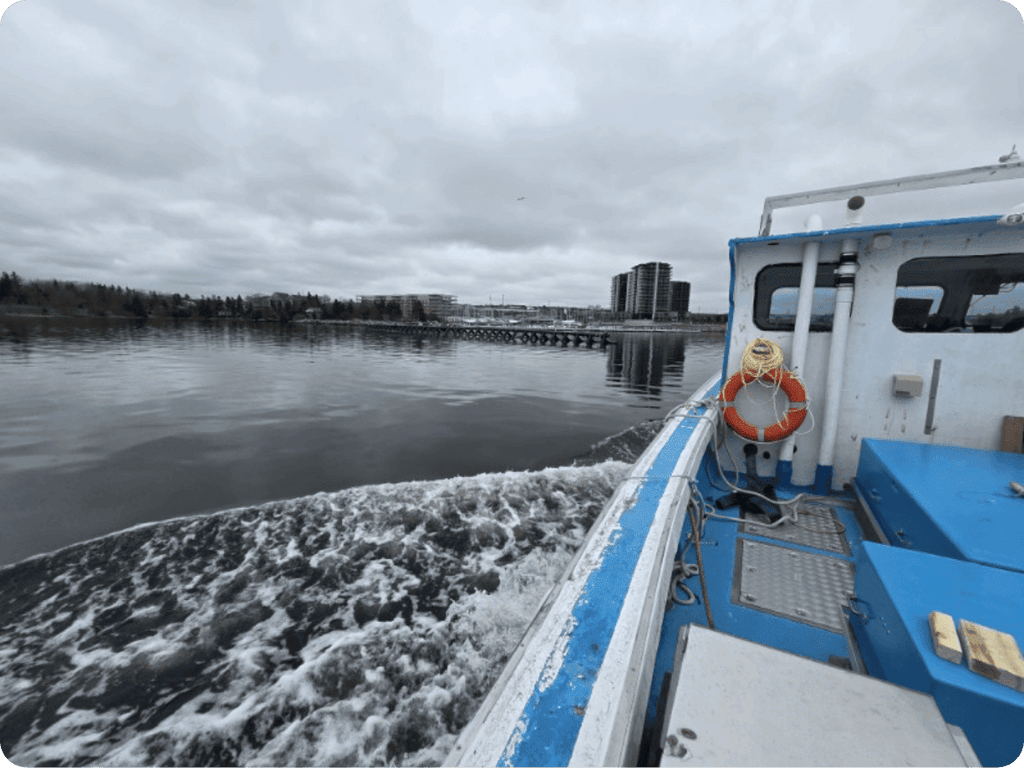

  • A blue and white boat moving across calm water under an overcast sky, with a life preserver on the side and a distant shoreline with trees and buildings.
  • N.S. - 41' x 13.4' - File # 2851

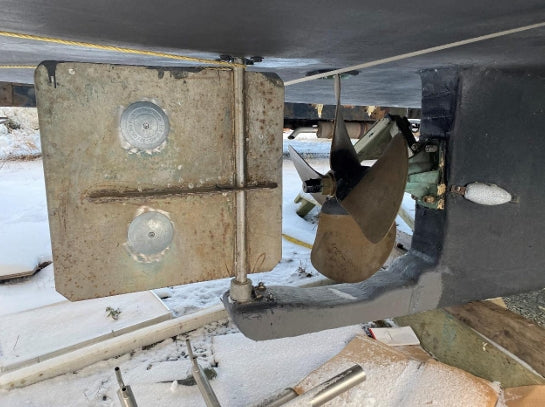

  • Close-up of a boat's stern mechanical area showing a large metal rudder, a bronze propeller, and part of the dark hull in a snowy outdoor setting.

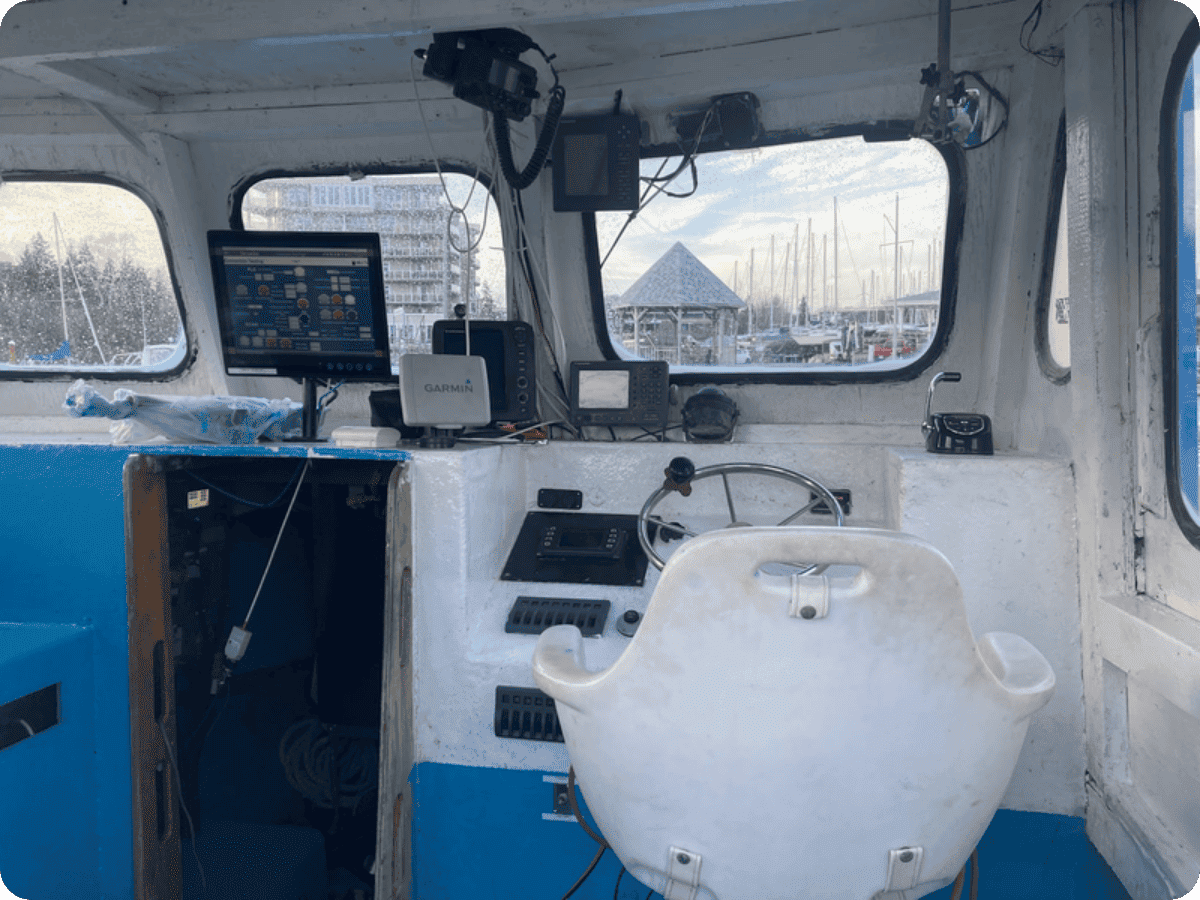

  • The helm station of a boat cabin featuring a white molded seat, navigation screens, a steering wheel, and various electronic equipment mounted on the white and blue painted interior walls.

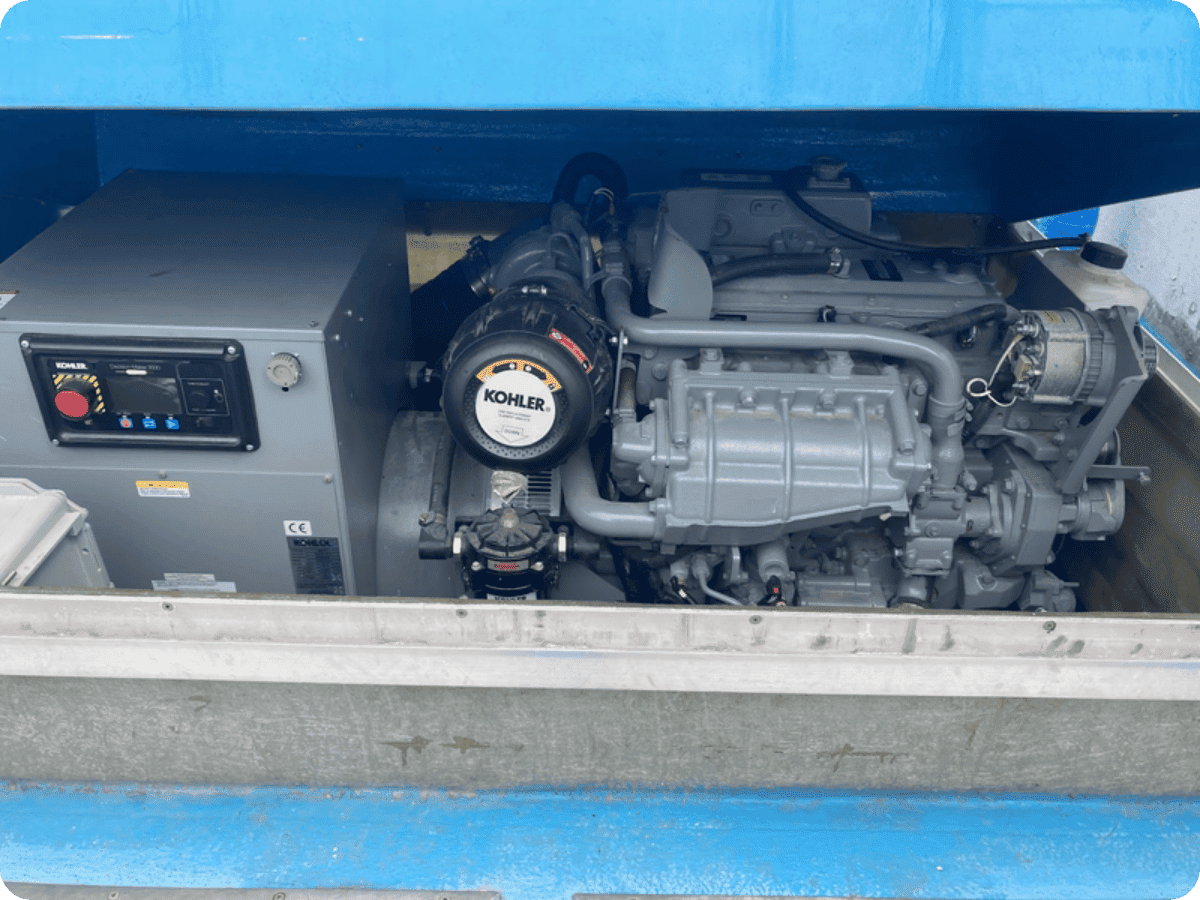

  • A Kohles marine diesel engine and alternator unit installed inside a blue generator enclosure, with the engine bayonet visible and the alternator on the right side.

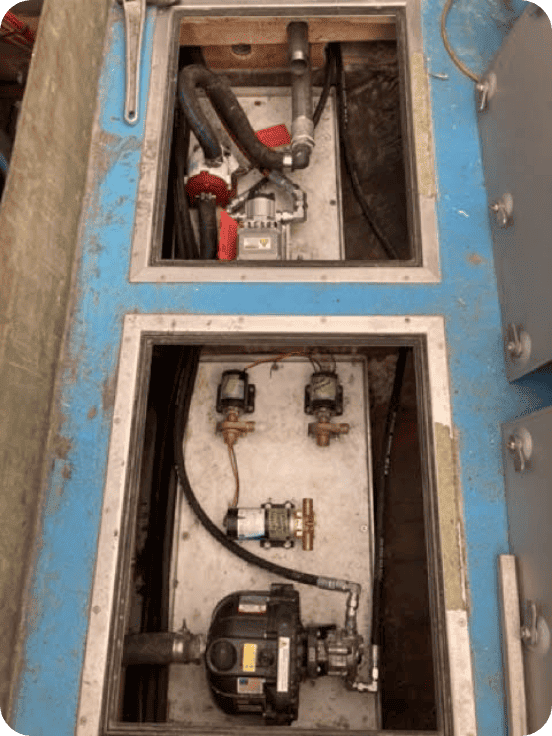

  • Open blue and gray industrial machinery compartments showing internal pumps, hoses, valves, and metal piping.

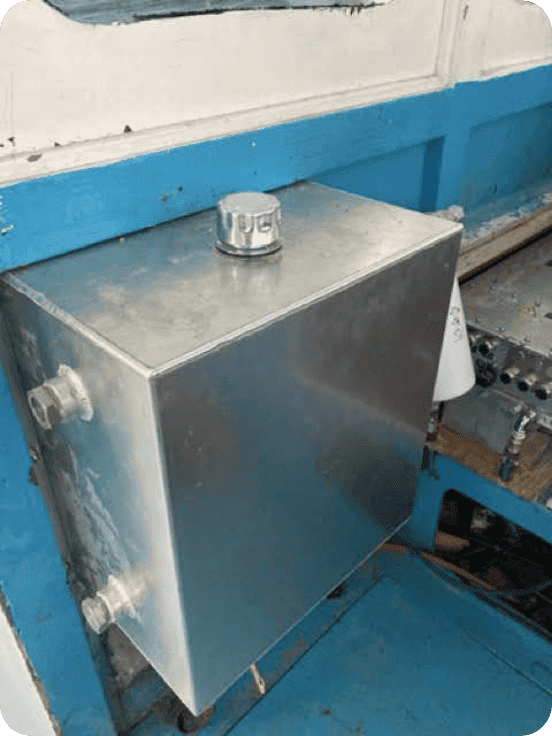

  • A rectangular stainless steel tank with a silver cap on top and two side fittings, mounted against a blue and white painted structure.

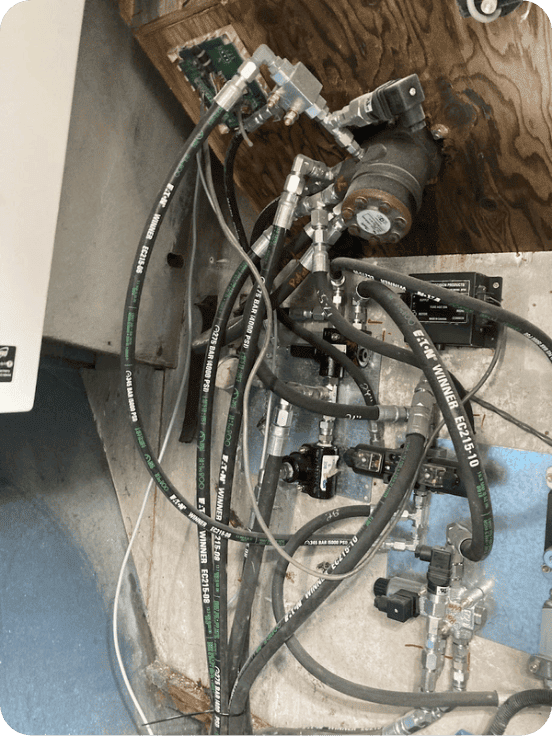

  • Close-up of a mechanical hydraulic or pneumatic control assembly with multiple black hoses, metal fittings, a small motor or pump component, and an electronic control module mounted against a wood and metal panel.

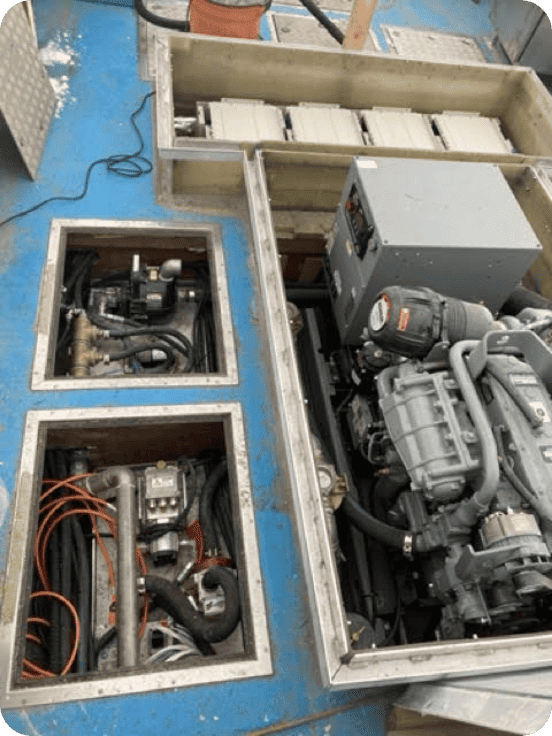

  • An open mechanical engine compartment with exposed metal frames, hoses, wiring, and a large gray engine block on a blue surface.

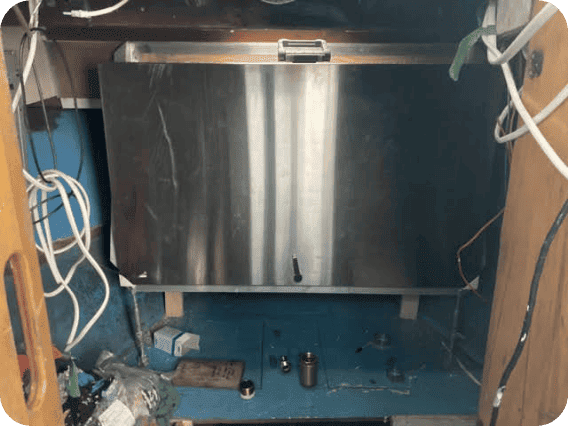

  • A large rectangular stainless steel panel or door mounted inside a blue-framed opening, surrounded by visible wiring, tools, and workshop materials.

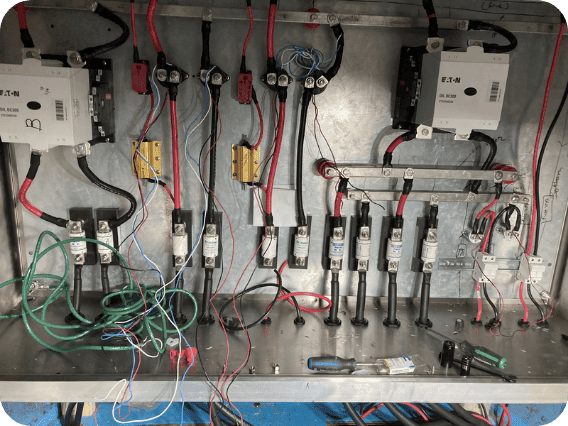

  • An electrical panel or control cabinet interior with multiple circuit breakers, fuses, wires, terminal blocks, and metal components arranged on a metal chassis.

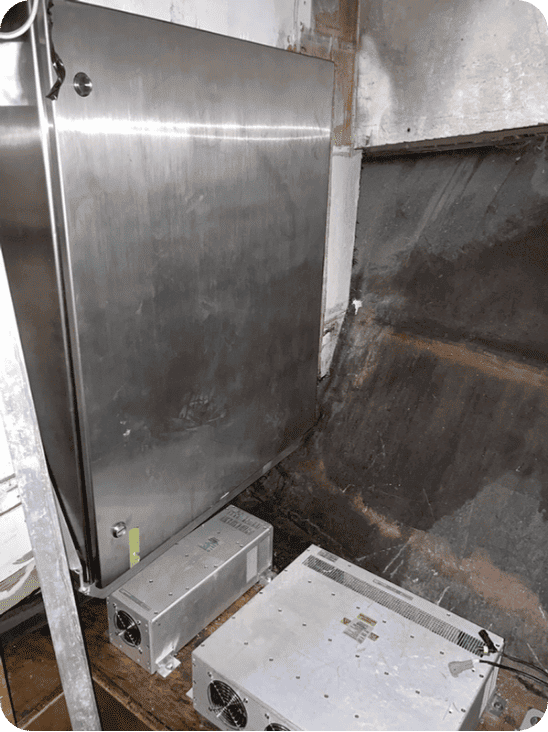

  • A large brushed stainless steel appliance panel or cabinet shown in a rough industrial or warehouse setting, with two metal electrical or control boxes on the floor nearby.
N.S. - 41' x 13.4' - File # 2851

N.S. - 41' x 13.4' - File # 2851

$190,860.00

Specs

Hull Material

Fiberglass

Year Built

1997

Length

41 ft. 10 in.

Width

13.4 ft.

Builder

Dana Hunter

Main Engine

Make and Model

- Hybrid -

Kohler 100 kW Generator - 240/480V 60Hz with only 100 operating hours, Water cooled

Danfoss Editron Electric Motor with controller 135 kW / 80 kW  270–425 VDC  320 Nm torque (uninstalled)

Horsepower / Output

 320 Nm torque

Engine Hours

100 Operating hours

Fuel Type

Diesel - Electric

Hydraulic System



  • Parker electro-hydraulic pump with controller
  • New hydraulic expansion tank
  • All new hydraulic lines
  • New steering hydraulic ram
  • New hauler motor
  • Pacer hydraulic/electric washdown pump

Electronics
  • Programmable Logic Controller (PLC)
  • 15" 12V touchscreen display
  • Glendinning Genesys electronic propulsion throttle
  • Multiple Danfoss AC/DC converters and filters
  • Multiple high-voltage relays, contactors, and fuses
  • ElCon HK-J Series 6.6 kW UHF CAN Bus battery charger
  • Three 12V Canada Proof 1500 CCA marine batteries
  • Complete new vessel wiring with grounding plate
  • Hundreds of feet of 1/0 and 3/0 marine cable
  • VHF radio
  • Radar
  • Sounder
  • GPS / Plotter
  • AM / FM radio
  • Autopilot

Contacts

Broker - Jacob Buffett

Phone: 902 - 565 - 6238

Email: Info@BayListBrokers.com
